Product Description

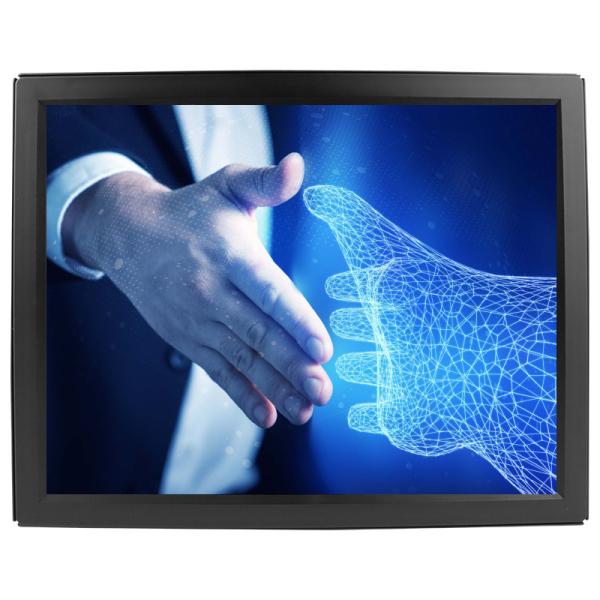

15-Inch SAW Touch Monitor: Waterproof, 400cd/M² Brightness
SAW Touch Monitor is a 15.6 Inch open frame LCD display with 1920*1080 resolution @ 60Hz and 16:9 aspect ratio. It features a fast 5ms response time, making it ideal for gaming and video playback. The monitor comes with SAW touch technology, which is a leading touch technology that provides a reliable, cost-effective, and durable touch screen solution. This monitor is perfect for commercial and industrial applications that require a reliable and accurate touch screen.
Specification
| Complete Machine |
| Model No. | KOT-0156U-SA4BP (P/N:KOT-156P-004) |
| Series | OT |
| Display Type | 16:9 Ratio 15.6" TFT-LCD |
| Active Area | 344.23*193.54(mm) |
| Monitor Dimensions (W*H*D) | 388.5*237.5*43(mm) |
| Brightness (Typ.) | Pure LCD Panel | 400cd/m2 |
| With Touch Monitor | 340cd/m2 |
| Viewing Angle(Typ.at CR＞10)) | Horizontal(left/right) | 70°/70° |
| Vertical(up/down) | 60°/60° |
| Contrast Ratio (Typ.) | 650:1 |
| Frequency (H/V) | 30～80KHz / 50～76Hz |
| Power Supply | Type: External brick Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz |
| Environment | Operating Temp. | 0～50°C |
| Operating RH | 20%～80% |
| Storage Temp. | -20～60°C |
| Storage RH | 10%～90% |
| MTBF | ≥15,000 Hours |
| LED Back Light Life (Typ.) | ≥15,000 Hours |
| Weight(N.W/G.W) | 3Kg(1pcs)/8.25Kg(2pcs in one package) |
| Package dimensions | 468*150*323(mm)(2pcs in one package) |
| Power Consumption | Standby Power: ≤1.5W / Operating Power: ≤15W |
| Mount Interface | 1.VESA 75mm and 100mm 2.Mount bracket, horizontal or vertical mount |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Agency approvals | CCC, UL, FCC, CE, CB, RoHS |
| Regular Warranty | 1 year |
Mechanical Dimensions
Applications:

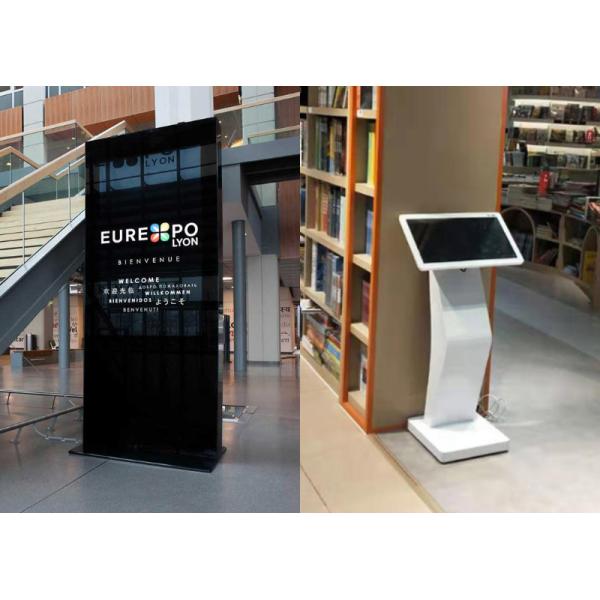

KeeTouch Saw touch monitors are widely used in industries such as retail, gaming, kiosk, hotels, self-service, travel service, education, finance, transit, conference, healthcare, public service, e-commerce, restaurants, payment systems, museums, exhibitions, smart home, subways, control and operation systems, railway stations, airports, entertainments, etc.
Support and Services:
SAW Touch Monitor provides technical support and service to our customers. Our support team is available 24/7 to answer any questions and provide any assistance necessary. Our support team is knowledgeable and experienced in all aspects of SAW Touch Monitor, from installation and setup to troubleshooting and maintenance. We also provide regular updates to ensure that SAW Touch Monitor is always up to date. In addition, we have a wide range of resources available, including online tutorials, user manuals, and FAQs.
We also offer a range of support options to meet the needs of our customers. These include on-site assistance, remote support, and telephone support. No matter how complex the issue, our team of experts is here to help you get the most out of your SAW Touch Monitor.
FAQ:
Q1: What brand is the SAW Touch Monitor?
A1: The SAW Touch Monitor is KEETOUCH brand, and the model number is KOT-156P-004.
Q2: Where is the SAW Touch Monitor made?
A2: The SAW Touch Monitor is made in Shenzhen, China.
Q3: What certifications does the SAW Touch Monitor have?
A3: The SAW Touch Monitor has CCC, UL, FCC, CE, CB, RoHS certifications.
Q4: What's the minimum order quantity for the SAW Touch Monitor?
A4: The minimum order quantity for the SAW Touch Monitor is 1pcs.
Q5: What's the delivery time for the SAW Touch Monitor?
A5: The delivery time for the SAW Touch Monitor is 7-15 work days.
